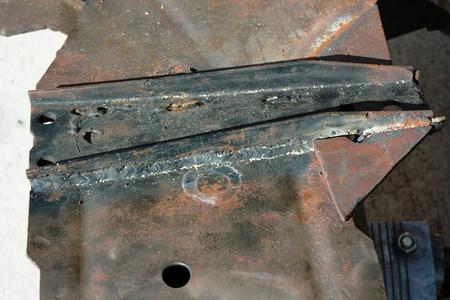

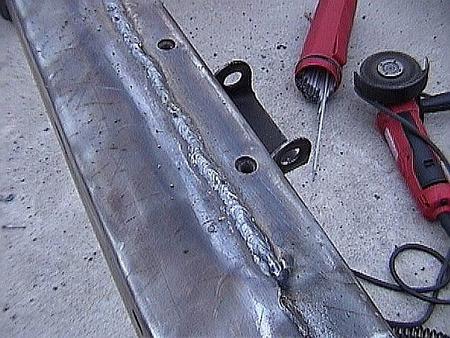

Here is a full weld pass down one of the frame rails.

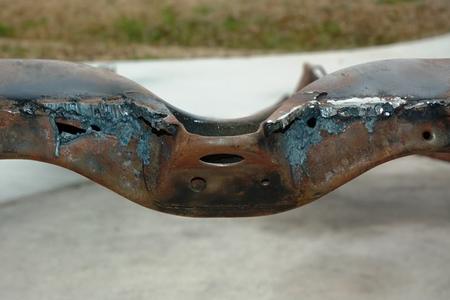

Damage done by torch.
I boxed in the front part of the frame to add strength where the sway bars will connect.

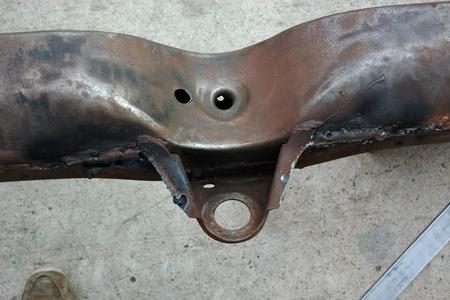

After cutting off gussets at differential mount.

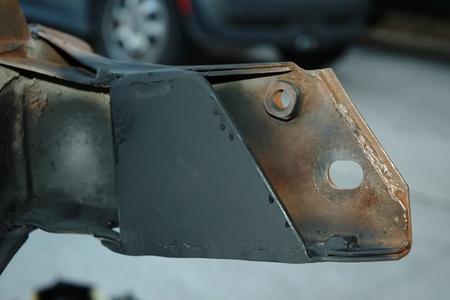

This is the welded gusset on the other a-arm.

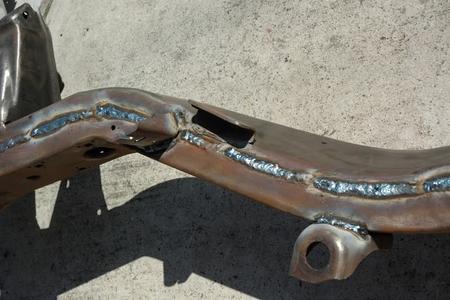

Welds complete on driver's side frame rail.

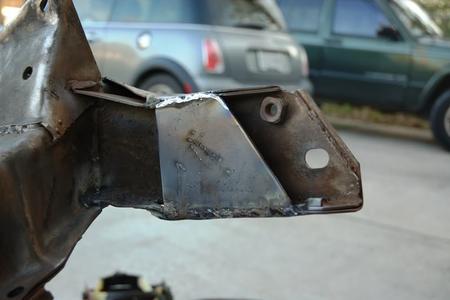

A-arm bracket is welded, and gusset is welded on the bottom side.

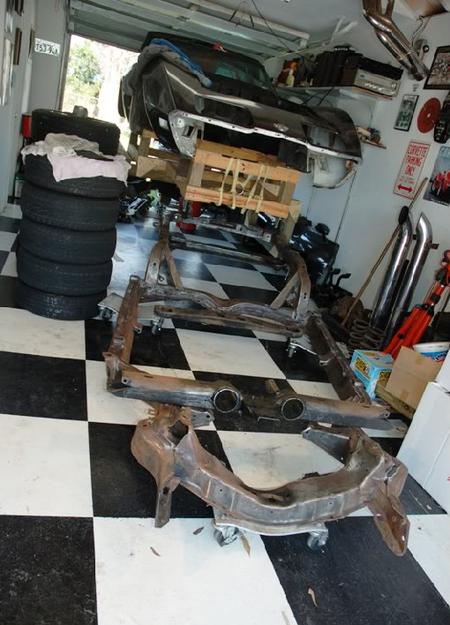

Frame going back under Vette body dolly.
This is the Vette frame up-side down.

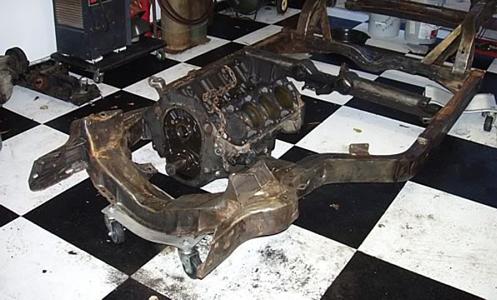

Here is the 454 short block bolted to the frame.

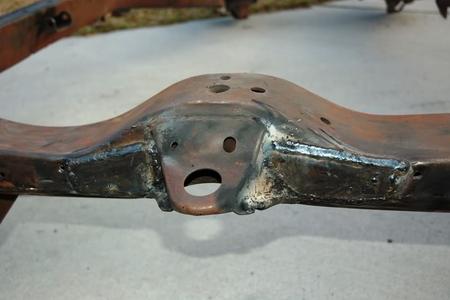

I had gusseted the differential mount, but later discovered that the body will not clear those gussets. I cut the gussets off with a torch, but in doing so, I slightly damaged the frame. In order to repair the damage, I had to fabricate a couple of plates to weld in place.

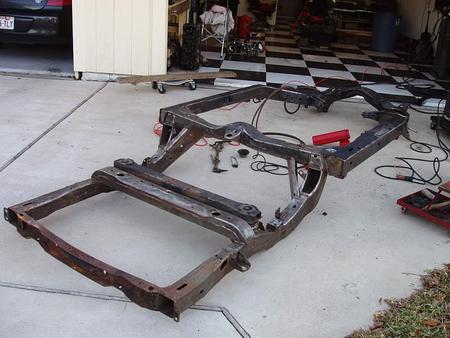

Now that I have everything off the frame,
I decided to beef it up by completing the welds.

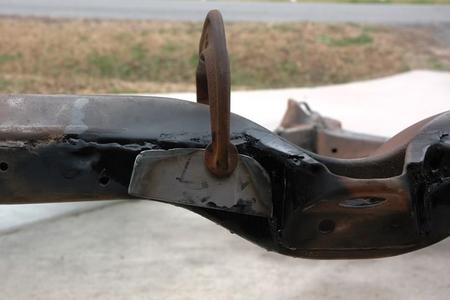

Plate held in place with C-Clamp.

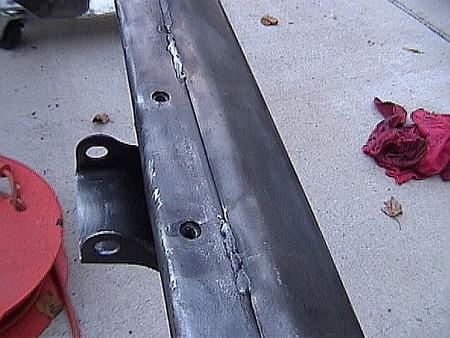

The factory only spot welded the frame.

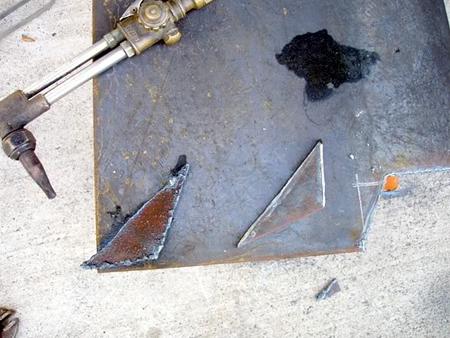

To strengthen the frame, I fabricated gussets.

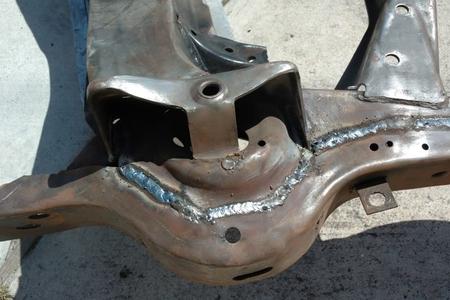

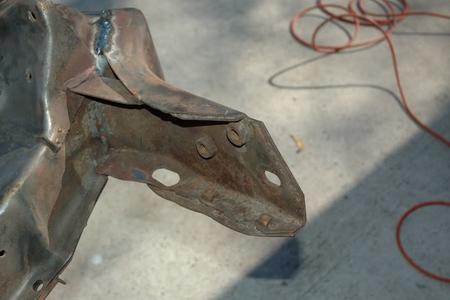

Welds completed at front shock mount.

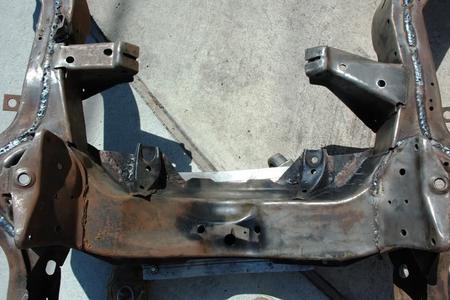

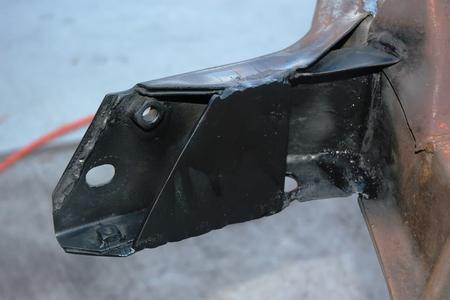

Gussets complete at A-Arm mounts.

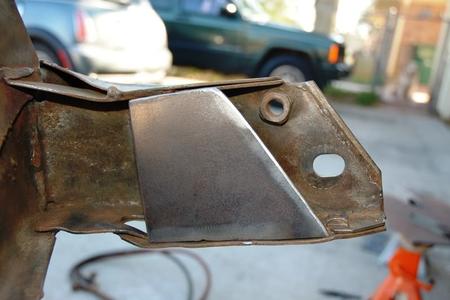

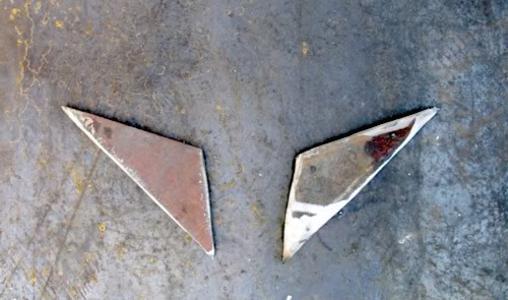

Gussets ready to be welded to the frame.

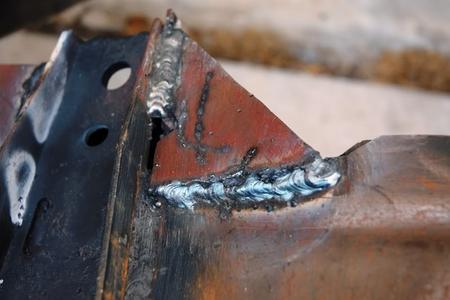

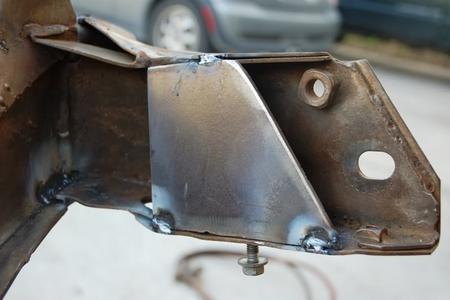

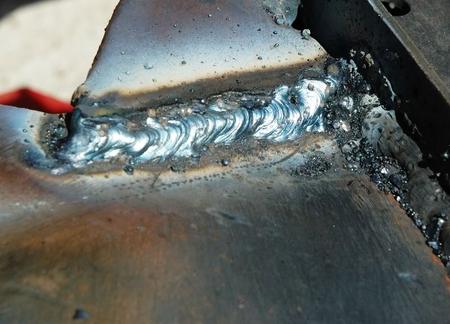

Finished welding this gusset in place.
Not too bad for an old stick welder!

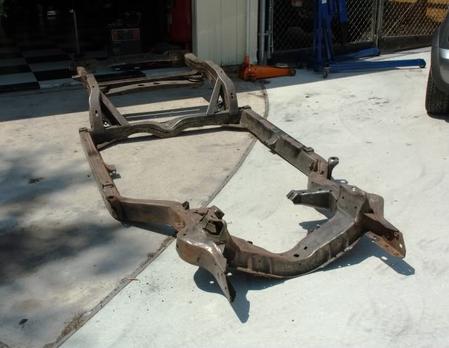

A few more welds, the frame is almost ready for the suspension.
